Part #: MRU-80X100X12-KYB

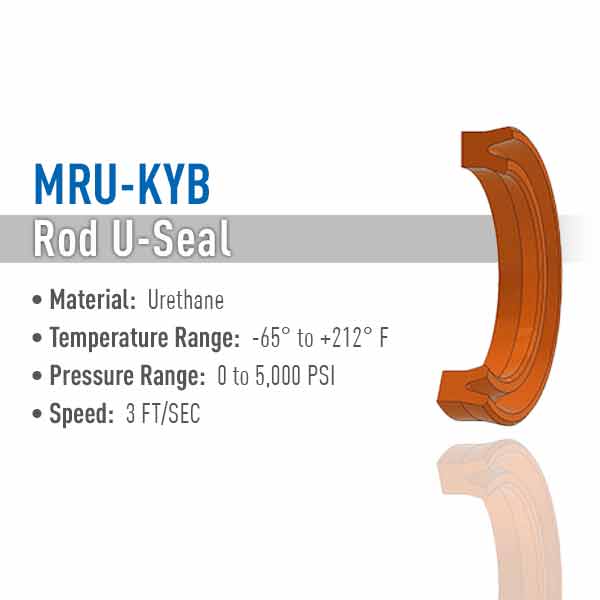

MRU-80X100X12-KYB is a MRU-KYB Rod U-Seal with an ID 80.000 X OD 100.000 X Height 12.000
MRU-KYB rod u-seals are made to a Kayaba-equivalent design which is commonly used within Caterpillar, Deere/Hitachi and Volvo cylinders.
MRU-80X100X12-KYB,US-90URE-80.00x100.00x12.00
| SEAL INFORMATION | |
|---|---|
| MATERIAL | URETHANE |
| TEMPERATURE RANGE | -49° TO +212° F |
| PRESSURE RANGE | 0-5000 PSI |
| SPEED | 3FT/SEC |
| Product | MRU-80X100X12-KYB |
| Weight | 0.0749 lbs |

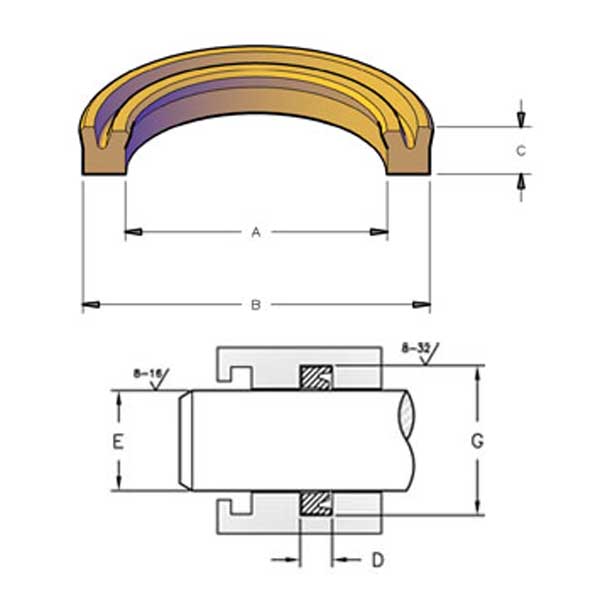

| A Nom ID | 80 |
| B Nom OD | 100 |
| C Nom Height | 12 |
| D Groove Width | 13 |
| Rod | 80 |
| G Housing Diameter | 100 |
| Temperature Range | -49° TO +212°F |
| Pressure Range | 0-5,000 PSI |
| Speed | 3FT/SEC |
| Product | MRU-80X100X12-KYB |
|---|---|
| Weight | 0.0749 lbs |
| A Nom ID | 80 |
| B Nom OD | 100 |
| C Nom Height | 12 |
| D Groove Width | 13 |
| Rod | 80 |
| G Housing Diameter | 100 |
| Temperature Range | -49° TO +212°F |
| Pressure Range | 0-5,000 PSI |
| Speed | 3FT/SEC |
