Part #: MRTUB-35X50X9.5

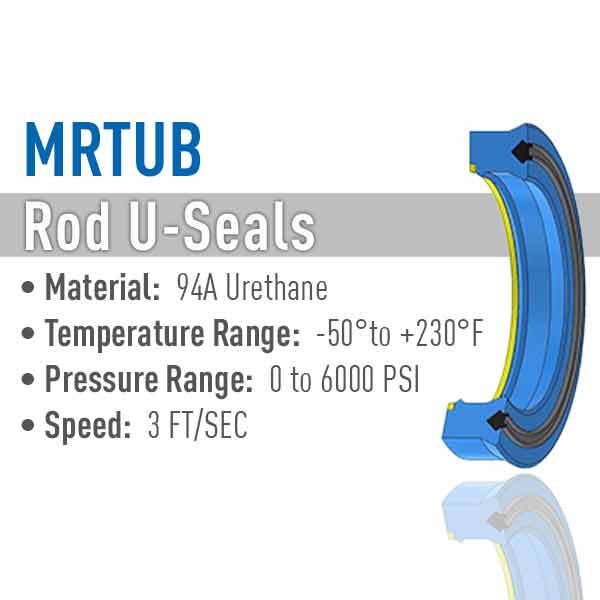

MRTUB-35X50X9.5 is a MRTUB Rod U-Seal with an ID 35.000 X OD 50.000 X Height 9.500
Part #: MRTUB-35X50X9.5
MRTUB-35X50X9.5 is a MRTUB Rod U-Seal with an ID 35.000 X OD 50.000 X Height 9.500
MRTUB-35X50X9.5,RUS-90URE-35x50x9.5, U-SEALS
MFG # 4335310, BD-35X50X9.5, MK31-035X050X9.5, MRTLU-035X050X09.5, R035050095RE, MR-35X50X9.5TB, ERAM035050-095
Our premium single-acting polyurethane rod seal incorporates an NBR energizer to seal at low pressures. The twin lip design provides stability and friction-reducing lube retention for dry rod sealing, and the included hard acetal backup ring resists extrusion. MRTUB is capable of pressures up to 10,000 psi in approved applications. Please consult Hercules Engineering for pressures above 6,000 psi.
| SEAL INFORMATION | |
|---|---|
| MATERIAL | 94 A URETHANE SEAL RUBBER ENERGIZER POLYACETAL ANTI-EXTRUSION RING |
| MAXIMUM OPERATING CONDITIONS | ||
|---|---|---|
| MAXIMUM SPEED | PRESSURE RANGE | TEMPERATURE RANGE |
| 3FT./SEC | 0 - 6,000 PSI | -50° TO +230° F |
| MAXIMUM EXTRUSION GAP | |
|---|---|
| PRESSURE | 2,400 PSI 3,750 PSI 6,000 PSI 7,500 PSI 10,000 PSI |
| MAX. RADIAL GAP (INCH) | .040 .032 .024 .016 .010 |
| PART NUMBER | (Prefix)(CS) - (ID) - (Height) |
| Product | MRTUB-35X50X9.5 |
| Weight | 0.0223 lbs |

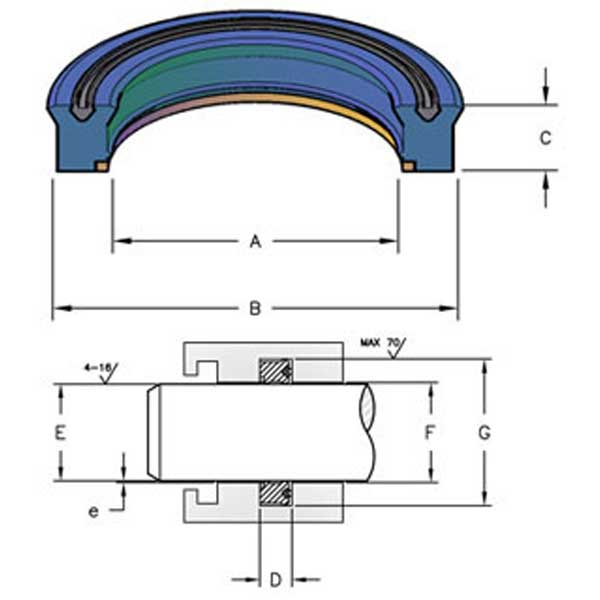

| A Nom ID | 35 |
| B Nom OD | 50 |
| C Nom Height | 9.5 |
| D Groove Width | 10.50 |
| Rod | 35.00 |
| G Housing Diameter | 50.00 |
| Temperature Range | -50° TO +230°F |
| Pressure Range | 0 - 6,000 PSI |
| Speed | 3 FT/SEC |
| Product | MRTUB-35X50X9.5 |
|---|---|
| Weight | 0.0223 lbs |
| A Nom ID | 35 |
| B Nom OD | 50 |
| C Nom Height | 9.5 |
| D Groove Width | 10.50 |
| Rod | 35.00 |
| G Housing Diameter | 50.00 |
| Temperature Range | -50° TO +230°F |
| Pressure Range | 0 - 6,000 PSI |
| Speed | 3 FT/SEC |
