Part #: MRTU-12X18X5.7
MRTU-12X18X5.7 is a MRTU Rod U-Seal with an ID 12.000 X OD 18.000 X Height 5.700
MFG # 4314900, BS-12X18X5.7, MRUC-012X018X05.7, R012018057RC, MR-12X18X5.7T
Part #: MRTU-12X18X5.7
MRTU-12X18X5.7 is a MRTU Rod U-Seal with an ID 12.000 X OD 18.000 X Height 5.700
MFG # 4314900, BS-12X18X5.7, MRUC-012X018X05.7, R012018057RC, MR-12X18X5.7T
MRTU-12X18X5.7,US-90URE-12x18x5.7, U-SEALS

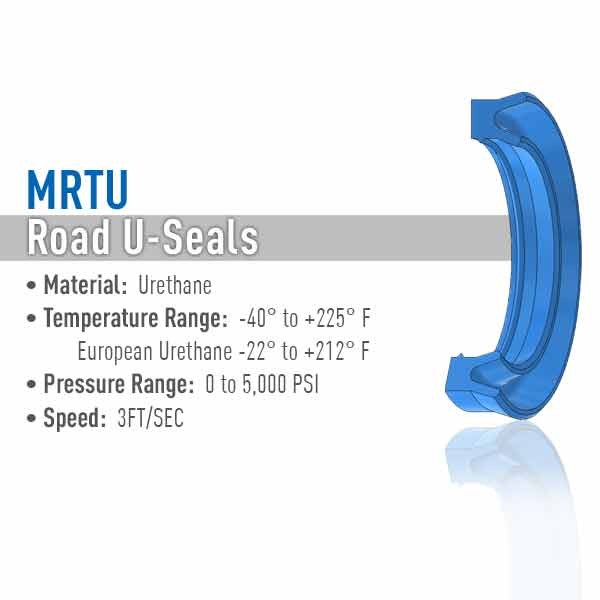

Molded in a tough urethane this seal employs an additional lip near the heel. The Twin Lip design provides stability, friction-reducing lube retention, and a contaminant blocker. VME - Secondary lip is further from heel than standard MRTU. NOTE: E = European Urethane
| SEAL INFORMATION | |
|---|---|
| MATERIAL | URETHANE |
| TEMPERATURE RANGE | -40° to +225° F E: -22° to +212° F |
| PRESSURE RANGE | 0 to 5,000 PSI |
| SPEED | 3 FT/SEC |
| PART NUMBER | (Prefix) - (ID) x (OD) x (H) |
| Product | MRTU-12X18X5.7 |
| Weight | 0.0019 lbs |

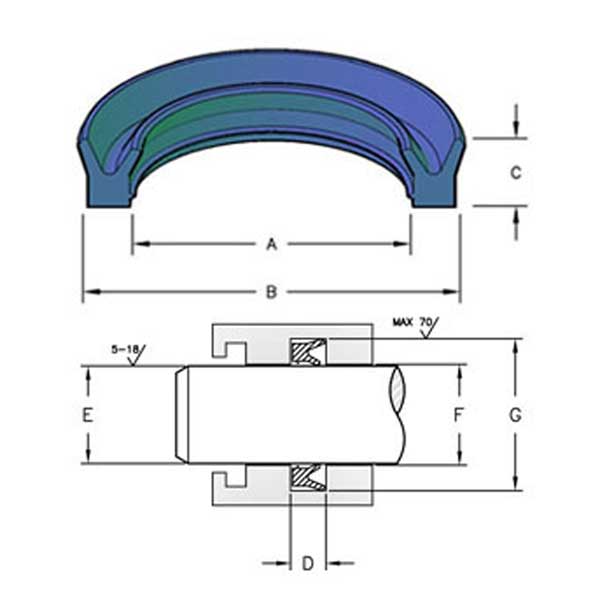

| A Nom ID | 12 |
| B Nom OD | 18 |
| C Nom Height | 5.7 |
| D Groove Width | 6.30 |
| Rod | 12.00 |
| G Housing Diameter | 18.00 |
| Temperature Range | -40° TO +225°F |
| Pressure Range | 0 to 5,000 PSI |
| Speed | 3 FT/SEC |
| Product | MRTU-12X18X5.7 |
|---|---|
| Weight | 0.0019 lbs |
| A Nom ID | 12 |
| B Nom OD | 18 |
| C Nom Height | 5.7 |
| D Groove Width | 6.30 |
| Rod | 12.00 |
| G Housing Diameter | 18.00 |
| Temperature Range | -40° TO +225°F |
| Pressure Range | 0 to 5,000 PSI |
| Speed | 3 FT/SEC |
