Part #: MCVR84-035

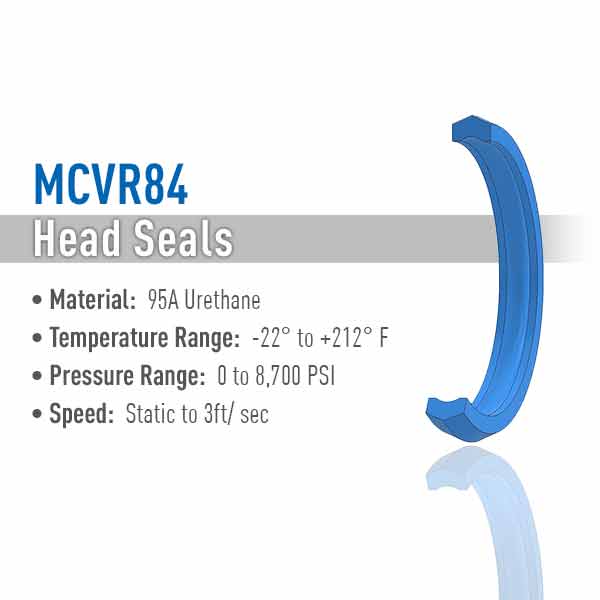

MCVR84-035 is a MCVR84 Cover Seal with an ID 30.400 X OD 35.000 X Height 3.390
Part #: MCVR84-035
MCVR84-035 is a MCVR84 Cover Seal with an ID 30.400 X OD 35.000 X Height 3.390
MCVR84-035,HS-95URE-35.00x30.40x3.39wd(3.90gvw)
| Product | MCVR84-035 |
| Weight | 0.0022 lbs |
| A Nom ID | 30.4 |
| B Nom OD | 35 |
| C Nom Height | 3.39 |
| H Groove Diameter | 30.4 |
| D Groove Width | 3.9 |
| Bore | 35 |
| Temperature Range | -22° TO +212°F |
| Pressure Range | 0 TO 8,700 PSI |
| Speed | STATIC TO 3FT/SEC |
| Product | MCVR84-035 |
|---|---|
| Weight | 0.0022 lbs |
| A Nom ID | 30.4 |
| B Nom OD | 35 |
| C Nom Height | 3.39 |
| H Groove Diameter | 30.4 |
| D Groove Width | 3.9 |
| Bore | 35 |
| Temperature Range | -22° TO +212°F |
| Pressure Range | 0 TO 8,700 PSI |
| Speed | STATIC TO 3FT/SEC |
